Solano 2385

Luxury Vinyl • Aerial

Product Specifications

Market Segments
Pro, Property Management, Residential, Senior Living
Sub Category
LVP
Collection
Aerial
Style Name
Solano
Style Number
2385
Construction
Luxury Vinyl
Format
Plank
Abrasion Resistance
Heavy Residential & Light Commercial Use
Material
Virgin PVC
Width
6" (152.4 mm)
Total Thickness
0.079" (2 mm)
Wear Layer Thickness
0.0120" (0.3000 mm)
Interlayer
None
Backing
Dry Back
Edges
4-Sided Micro Bevel
Locking System
None
Finish
Medium Embossed
Top Surface
UV-Cured Polyurethane
Gloss
Matte
Pattern Repeat
6
IIC
n/a
STC
n/a
Design
Oak
Formaldehyde
E1
Length
48" (1219.2 mm)
Certifications
Virgin PVC, Designers' Choice, FloorScore, E1 Certified, Phthalates-Free, BLC Certification, QuickShip
Installation Methods
Herringbone, Compatible with embedded radiant heating, GluedLuxury Vinyl Installation Guide (DryBack)Wall Installation Guide - Luxury Vinyl

www.beaulieucanada.com

Technical Bulletin

page 1 of 4

Solano 2385

Luxury Vinyl • Aerial


Plank Packaging information

Units Per Box
18
Boxes Per Pallet
70
Box Weight
28.08 pounds (12736.86 grams)
Square Meters Per Box
3.34
Square Meters Per Pallet
234.11
Square Feet Per Box
36
Square Feet Per Pallet
2520

Warranties

Luxury Vinyl Warranty GuideLuxury Vinyl Care & Maintenance Guide
Residential use
No Questions Asked Replacement 30 daysPetproof LifetimeWaterproof LifetimeFade 25 YearsManufacturing Defects 25 YearsWear 25 YearsStain 25 Years
Light commercial use
Petproof LifetimeWaterproof LifetimeFade 7 YearsManufacturing Defects 7 YearsStain 7 YearsWear 7 Years

Moldings

  • MultitrimCoordinating94" X 0.23" X 1.593"
    (2388 mm X 5.842 mm X 40.481 mm)
  • Stair NoseCoordinating94" X 1.16" X 2"
    (2388 mm X 25.4 mm X 51 mm)

www.beaulieucanada.com

Technical Bulletin

page 2 of 4

Solano 2385

Luxury Vinyl • Aerial


Dimensional Tolerance

Test

Test method

Result

Height difference
Max 0.15 mm
Pass
Curling in the presence of heat
EN ISO 23999 (≤ 2 mm)
Pass
Squareness
Max 0.25 mm
Pass
Width tolerance
ASTM F2055 0.4 mm / 305 mm
Pass
Gaps between planks
Max 0.15 mm
Pass
Dimensional stability
ASTM F2199-09 (max 1.67 mm per m)
Pass
Length tolerance
ASTM F2055 0.4 mm / 305 mm
Pass
Thickness tolerance
ASTM F386 0.13 mm
Pass

Physical Properties

Test

Test method

Result

Residual indentation
ASTM F1914-07 (average max 8%)
Pass
Surface scratch resistance
ISO 1518-1: 2011 (≥ 2500 g)
≥ 2500 g
Reaction to fire classification
EN 13501-1: 2007
Bfl-s1
Static load limit
ASTM F970-17
≥ 1000 PSI
Density
ISO 1183-1: 2012 (+/-0.05 g/cm³)
1.74-1.84 g/cm³
Peel resistance
EN ISO 24345 - Min 50 N / 50 mm
Pass
Flexibility
ASTM F137-08 and ASTM F1700-04
Pass
Slip resistance
EN 14041 and EN 13893
Class DS
Smoke density
ASTM E662
Pass
Color stability to heat exposure
ASTM F1514-03 (max ΔE=8)
Pass
Abrasion resistance
EN 660-2-1999 Range between 0.010 g-0.060 g /1000
Pass
Resistance to chemicals
ASTM F925-13 (max slight change)
Pass
Critical radiant flux class
EN ISO 9239-1
Bfl
Castor chair resistance
ISO 4918 and ISO 10582
Pass

Chemical Composition

Test

Test method

Result

Phthalates
Prop 65
None detected
Antibacterial wear layer
ASTM E2180-07
99.9% Reduction
TVOC (Total Volatile Organic Compounds)
CDPH / EHLB Standard Method V1.1
Pass
Formaldehyde Emission
EN 717-1: 2004
E1
Indoor air quality
SCS-EC10.3-2014 v3.0
FloorScore Certified

www.beaulieucanada.com

Technical Bulletin

page 3 of 4

Solano 2385

Luxury Vinyl • Aerial


Styles offered

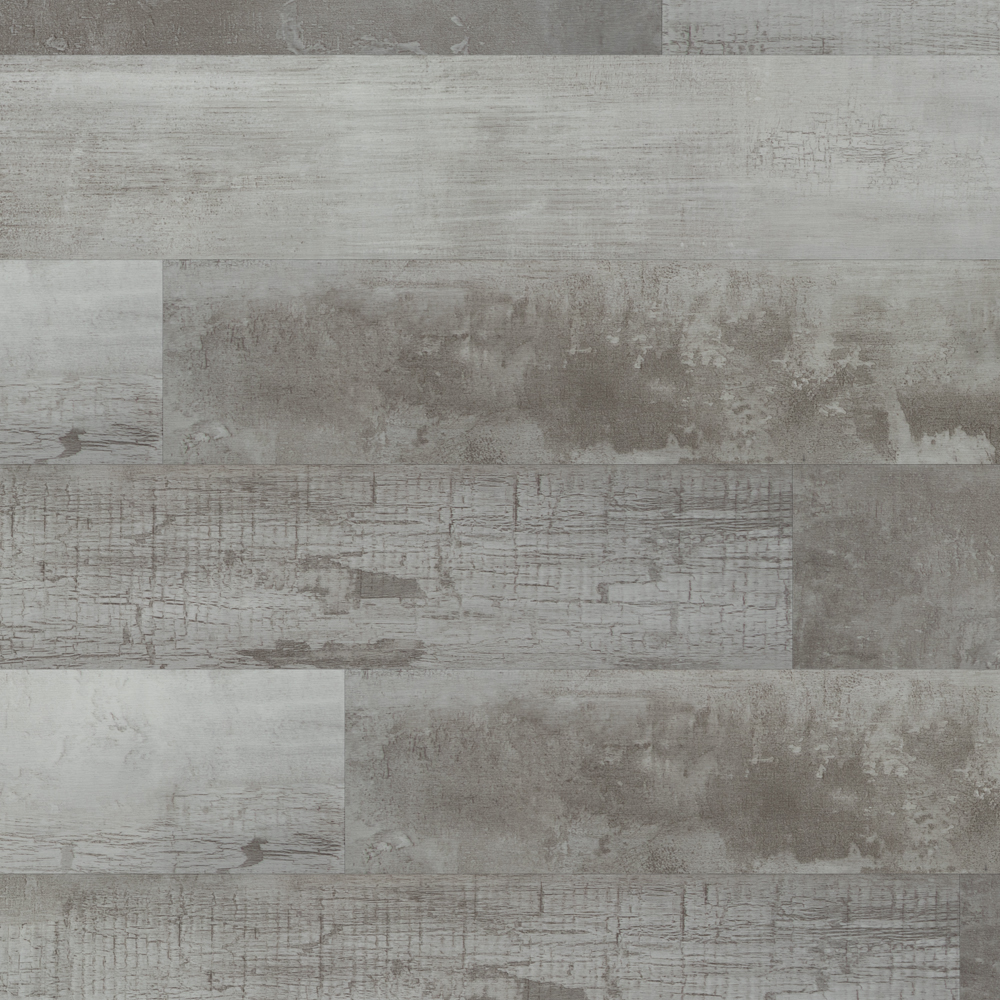

#2170 (Plank)
Boreas Medium Embossed

Dropped Product

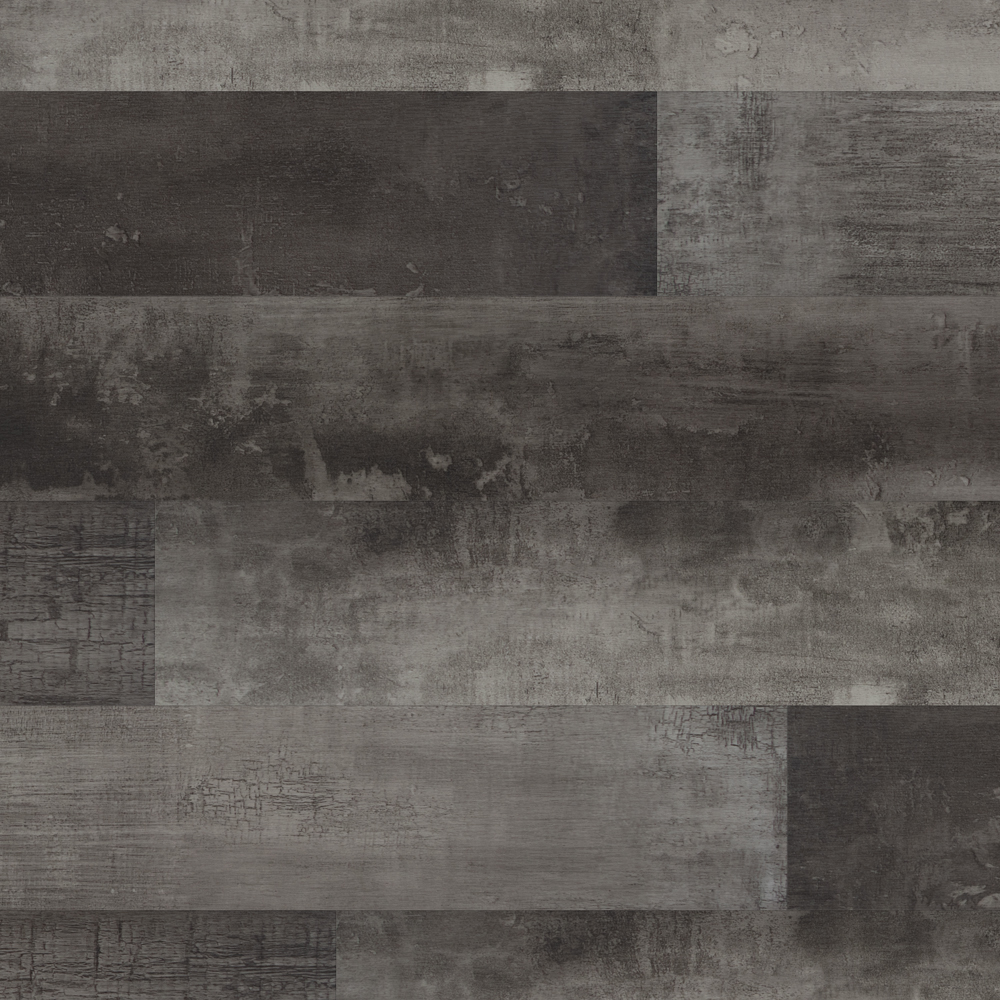

#2171 (Plank)
Chinook Medium Embossed

Dropped Product

#2172 (Plank)
Diablo Medium Embossed
#2173 (Plank)
Euros Medium Embossed
#2174 (Plank)
Notos Medium Embossed

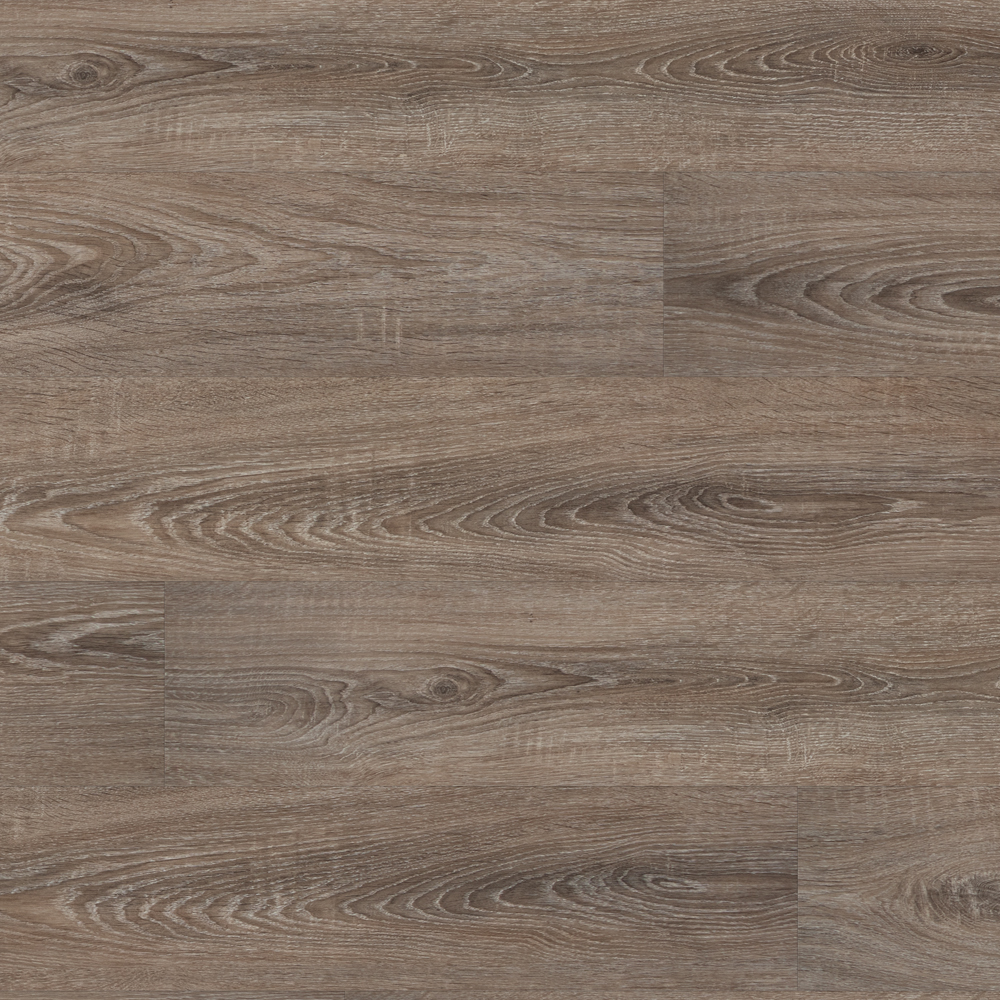

#2175 (Plank)
Sirocco Medium Embossed

Dropped Product

#2176 (Plank)
Squamish Medium Embossed
#2177 (Plank)
Zephyr Medium Embossed

Limited Stock

#2380 (Plank)
Coromuel Medium Embossed
#2381 (Plank)
Ostro Medium Embossed
#2382 (Plank)
Santa Ana Medium Embossed
#2383 (Plank)
Santa Lucia Medium Embossed
#2384 (Plank)
Sarma Medium Embossed
#2385 (Plank)
Solano Medium Embossed
#2386 (Plank)
Sundowner Medium Embossed
#2387 (Plank)
Vendavel Medium Embossed

Accessories
